Product Description
Net weight: 35g/pcsPackage weight: 73.5g
PCB dimensions(L x W): 2.2 x 1.5''/56 x 39mm
External dimension (L x W x H): 2.4 x 1.2 x 0.7"/62 x 39 x 18mm
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm
Wire range: 26-16AWG
Rated current: 10A
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Package included:
1 x DB15 breakout board male adapter
1 x DB15 breakout board female adapter
1x Slotted screwdriver
Features

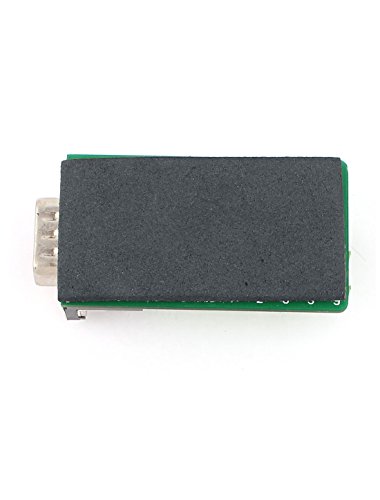

- With insulation foam at the bottom
- All-copper base, contacted better and more antioxidative
- All signal ports named and labeled clearly
- PCB carrier, FR-4 fiber glass PCB
- Compliant assembly, multiple checked before fulfilled
